Concrete batch plants: A comprehensive guide

Introduction to Batch Plants in Construction

In the world of construction, concrete is the backbone of most projects. From skyscrapers and bridges to sidewalks and houses, concrete is an essential material. But where does this vital material come from? The answer is concrete batch plants. Understanding what a batch plant is and how it operates can help construction professionals and contractors make informed decisions for their projects.

Browse and buy a range of concrete batch plants available from Machinery Partner

What is a Concrete Batch Plant?

A batch plant, or concrete batching plant, is a facility where materials are mixed to produce concrete. It combines ingredients such as cement, water, sand, and gravel in a process called batching. These plants produce concrete in large quantities, making them crucial for construction projects that require a steady supply of concrete. Batch plants can vary in size and complexity, from small portable plants to large stationary facilities.

How Does a Batch Plant Work?

The process of producing concrete at a batch plant involves several steps. First, the cement, water, sand, and gravel are measured and poured into their individual hoppers or silos. These materials are then transported by conveyor belts or manually into a mixing unit. Inside the mixing unit, the materials are combined and mixed together until they form a consistent mixture.

Once the concrete is mixed, it is loaded into trucks or concrete mixers for delivery to construction sites. The entire process is controlled by computer systems that ensure precision and accuracy in the batching process. Here is the step by step process of batch plant operation:

1. Material Handling: The plant stores raw materials like cement in silos, aggregates in hoppers, and water in tanks.
2. Weighing and Proportioning: Each material is weighed according to the mix design, ensuring that the proportions are precise.
3. Mixing: The materials are transferred to a mixer where they are thoroughly blended into fresh concrete.
4. Loading: The mixed concrete is then loaded into trucks or other transportation systems for delivery to the job site.

The quality of the concrete produced depends on factors like the water-to-cement ratio and the uniformity of the mix. Most modern plants are automated to ensure consistency and precision throughout the process.

Find out how to make you own concrete on site with our in depth guide here!

Dry Batch Plants vs. Wet Batch Plants

Dry Batch Concrete Plant:

Batch plants come in various configurations, each suited for different applications. The main types include:

• Ingredients are mixed in dry form: In a dry batch plant, the essential components of concrete, such as cement, aggregates, and admixtures, are measured and combined in their dry states. This ensures that each of the materials are accurately weighed and mixed according to the required specifications.
• Water is added during the transportation process: Unlike wet batch plants, where water is mixed with the ingredients at the plant, the dry batch method involves adding water during transportation. This occurs in transit mixers as the concrete is being delivered to the construction site. The mixing of water with the dry ingredients happens en route, allowing for greater flexibility and timing.
• Suitable for projects where precise water control is needed on-site: Dry batch plants are particularly beneficial for projects that require exact water content control. Since water is added during transport, adjustments can be made to accommodate specific project needs or environmental conditions, such as temperature and humidity, ensuring optimal concrete quality.

Wet Batch Concrete Plant:

• In a wet batch concrete plant, all the ingredients including aggregates, cement, and water are mixed together before being transported to the construction site. This process ensures that the mixture is ready for immediate use upon arrival.
• The wet mixture is consistent and homogenous, which is crucial for projects that demand a precise and uniform composition. This is particularly beneficial for large-scale projects or those with strict quality requirements.
• The plant allows for fast production and delivery since the concrete is pre-mixed. This reduces the waiting time at the construction site, helping to streamline workflows and increase efficiency.
• Wet batch plants are often used in commercial and industrial construction projects where the demand for concrete is high and time is of the essence. The pre-mixed concrete ensures that the construction process can proceed without unnecessary delays.

Stationary vs. Portable Batch Plants

Stationary Batch Plant

Fixed in one location, these plants are designed for long-term projects where a significant and consistent supply of concrete is necessary. Ideal for large-scale infrastructure projects such as highways, dams, or large commercial developments where frequent concrete delivery is required over an extended period. These plants feature advanced mixing technology and can produce large quantities of concrete efficiently, often with a higher degree of precision and customization. While more complex and expensive to set up due to the need for substantial groundwork, utilities, and equipment installation, they offer the advantage of economies of scale in production. They are also good candidates for concrete logistics hubs - find out more about what a concrete logistics hub is and how it could be important for your next project.

Browse Stationary Batch Plants Available on MachineryPartner.com

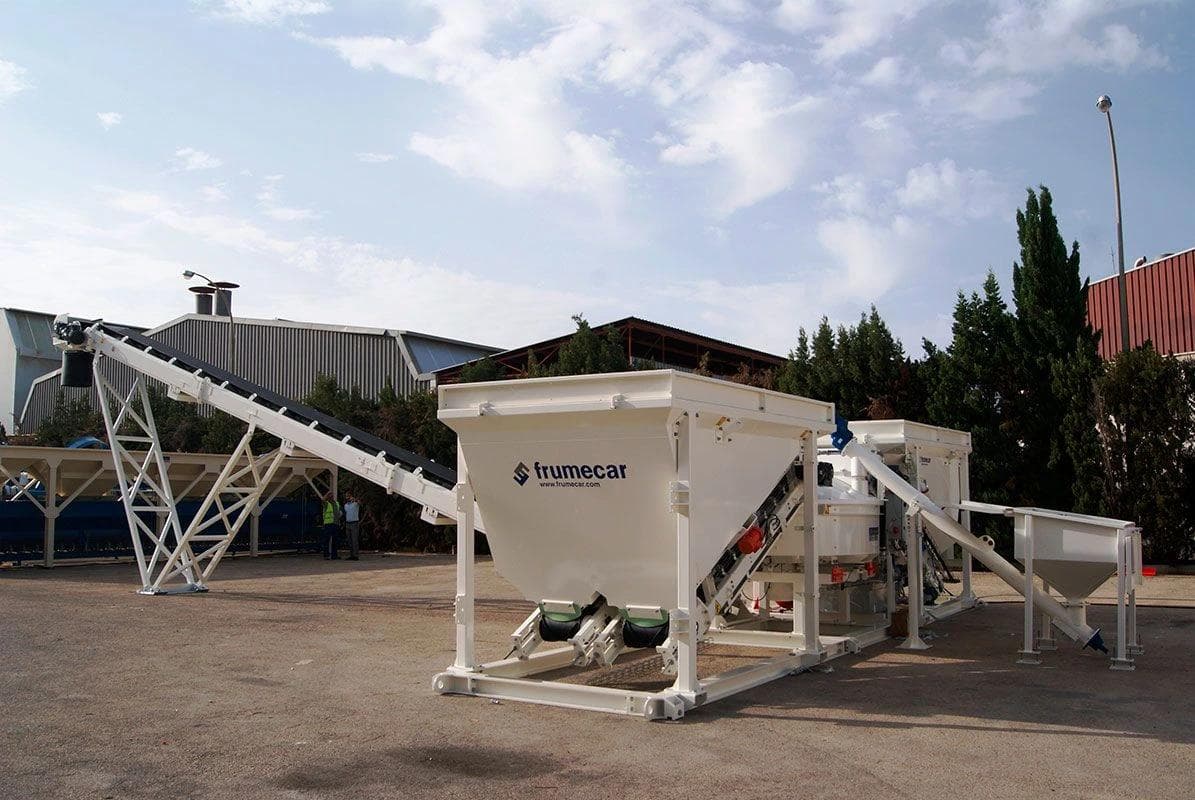

Portable Batch Plant

These plants are designed for mobility and can be easily relocated from one site to another, making them perfect for projects that are spread out over various locations or where the concrete needs are not constant. Ideal for smaller construction sites, rural projects, or temporary works such as road repairs, bridge construction, or disaster relief operations where flexibility is paramount. Typically less costly and simpler to set up than stationary plants, portable batch plants require minimal foundation work and can quickly be assembled and disassembled. Though they may produce smaller batches of concrete, they offer the ability to adapt to changing project requirements and reduce logistical challenges associated with concrete delivery.

Do you know what a concrete logistics hub is? They are super important for businesses that need large amounts of concrete in remote locations, far away from ready mix facilities ... find out more about concrete logistics hubs here!

Components of a Batch Plant

A typical batch plant consists of several components that work together to produce high-quality concrete efficiently. These include:

• Aggregate bins: These containers hold the sand and gravel essential for the concrete mix. By storing these materials separately, they ensure a consistent supply for the production process.
• Conveyors: These are mechanical systems that transport the aggregates from the bins to the mixer. By automating the movement of materials, conveyors improve efficiency and reduce manual labor in the production line.
• Cement silos: These are large storage units designed to keep cement dry and ready until it is needed for mixing. Their capacity allows for bulk storage, which helps in maintaining a steady supply of cement for continuous operations.
• Weigh hoppers: These devices are used to measure precise amounts of sand, gravel, cement, and other materials before they are added to the mixers. This precision ensures that the concrete mix has the correct proportions, which is crucial for its strength and durability.
• Mixers: These machines combine all the ingredients—aggregates, cement, water, and any chemical additives—into a homogenous mixture. Mixers are vital for ensuring the concrete is uniform and ready for use in construction.
• Control Systems (often computer-aided): These are sophisticated systems, often involving computer software, that regulate and monitor the production process. They help in maintaining consistency, improving efficiency, and ensuring safety standards are met throughout the operation.
• Heaters and chillers: These systems are used to control the temperature of the concrete mix. By heating or cooling the components, they ensure that the concrete cures properly, which is essential for its strength and longevity, especially in varying environmental conditions.

Browse Mobile + Portable Batch Plants Available on MachineryPartner.com

Is a batch plant right for your business?

Advantages of Using a Batch Plant in Construction
Using a batch plant offers several benefits:

• Consistency: Ensures uniform quality of concrete by maintaining the same standards and proportions across all batches. This uniformity is crucial for the structural integrity and reliability of construction projects.
• Efficiency: Streamlines the production process by optimizing resources and minimizing downtime. This results in faster turnaround times and increased productivity, allowing for more projects to be completed within a given timeframe.
• Customization: Allows for precise control over the mixture, enabling adjustments to be made based on specific project requirements. This flexibility ensures that the concrete produced meets the exact specifications needed for different applications, from residential to commercial structures.
• Cost-Effectiveness: Reduces wastage and operational costs by utilizing resources more efficiently and minimizing errors. This not only saves money but also enhances the overall profitability of projects by lowering material expenses and reducing the need for rework. You also don’t have to rely on ready mix plants for concrete delivery.
• Environmental Compliance: Many plants adhere to strict environmental regulations, ensuring that their operations do not harm the surrounding ecosystem. This includes implementing measures such as recycling waste materials, reducing emissions, and conserving energy, all of which contribute to a more sustainable industry.

Applications of Batch Plants in Different Construction Projects
Batch plants are versatile and used in various construction projects including:

• Residential and Commercial Buildings: This category includes the construction of homes, apartments, office buildings, shopping centers, and other structures that serve as living or business spaces. Key components involve laying solid foundations, constructing durable floors, and ensuring all structural elements meet safety and design standards.
• Infrastructure: The development and maintenance of essential public works such as roads, bridges, highways, and tunnels. These projects are crucial for facilitating transportation, connecting communities, and supporting economic growth. They require careful planning and execution to accommodate heavy traffic and withstand environmental challenges.
• Industrial Projects: Focuses on the construction of factories, warehouses, and other large-scale industrial facilities. These projects are designed to support manufacturing, storage, and distribution activities. They must adhere to specific industry standards and regulations, ensuring efficiency in operations and safety for workers.

Considerations for Choosing the Right Batch Plant
When selecting a batch plant, consider the following:

• Project Size and Scope: Larger projects may require stationary plants, while smaller projects might benefit from mobile plants.
• Location: Proximity to the construction site can impact transportation costs and concrete quality.
• Batch Plant Type: Choose between dry batch and wet batch based on project requirements.
• Environmental Regulations: Ensure compliance with local environmental laws and regulations.

Future of Batch Plants in Construction
Concrete batch plants play a crucial role in modern construction, providing significant benefits such as efficiency, consistency, and cost savings. These facilities are essential for producing high-quality concrete on-site, ensuring that construction projects meet their timelines and budgets without sacrificing standards. With the rapid pace of technological advancements, future batch plants are expected to become even more efficient, potentially incorporating automation and smart technology to streamline operations further. Additionally, there is a growing emphasis on making these plants more environmentally friendly, with innovations aimed at reducing waste, lowering emissions, and utilizing sustainable materials. As the construction industry continues to evolve, concrete batch plants will undoubtedly adapt and progress, maintaining their indispensable status in building the infrastructure of tomorrow.

Brief ROI Overview: Are Batch Plants a Good Investment?

Investing in a concrete batch plant can offer significant long-term savings compared to ordering ready-mix concrete. For example, as seen in the ROI calculations from a Frumecar EBA 1000 plant, producing 17,000 cubic yards of concrete in-house can save around $825,000 compared to buying ready-mix concrete. With a break-even point at just 6,000 cubic yards, owning a batch plant is a cost-effective solution for contractors who regularly need large volumes of concrete. Want to find out more information on the ROI of batch plant? Check out our concrete batch plant ROI blog.

Concrete Batch Plants from Machinery Partner

Ready to elevate your construction projects with high-quality concrete? Contact Machinery Partner today to learn more about our batch plant solutions or request a quote! Our team of experts is here to help you choose the best batch plant for your needs.

By understanding what a batch plant is and its benefits, construction professionals can make informed decisions that enhance project quality and efficiency, leading to successful project outcomes and optimized resource management.

For those looking to enhance their construction capabilities, we invite you to explore our range of concrete batch plants and machinery. Whether you're looking to streamline your processes or maintain top-tier quality, our comprehensive solutions have you covered.
