70' Mulch Master Bin Feeder
Key Specs
See all specsEngine Type
Cat 3.6 98kW Stage 5
Stockpile Height
27'2"
Ton per hour
Up to 600 tph
Why buy from Machinery Partner?
Usage
Best for
High-volume material handling and feeding, particularly for aggregates, sand, and demolition waste.Good for
Large-scale projects requiring robust and reliable conveyors with a high throughput.Not built for
Small-scale operations where a less powerful feeder would be more appropriate.Best loader
Crusher, screener, large excavator, large loaderOverview

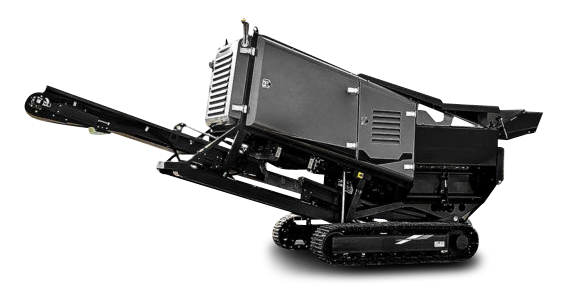

The Barford BF7048 Bin Feeder has a 70' by 48" belt. Designed to be flood loaded in the hopper, this conveyor is also fitted with an auger to mulch or mix material being fed into it. It can also fold making it easier to store and transport. It has a 13 cubic yard bin for large volume loading.
Additional Information
Model | Barford BF7048M 70' Mulch Master Bin Feeder  | Barford BF7042 70' Tracked Bin Feeder  |
Ton per hour | Up to 600 tph | Up to 500 tph |
Use case | Bulk materials like mulch, soil, gravel or other loose materials | Aggregate, construction, and demolition projects |
Belt width | 48" | 42" |
Belt Length | 70' | 70' |
Engine type | Cat 3.6 Stage 5 | Cat 3.6 Stage 5 |
Engine power | 131 hp | 131 hp |
Stockpile height | 27'2" | 27'2" |
Feeding height | 10'8" | 10'8" |
Operating weight | Up to 39685 lb | Up to 35280 b |
Mobility | Mobile | Mobile |
Transport size (L x W x H) | 43'11" x 7'9" x 8'6" | 44'5" x 7'7" x 8'5" |
Working size (L x W x H) | 68'10" x 27'2" x 9'3" | 68'9" x 7'7" x 27'2" |
Get a loan
Features
Hydraulic fold on discharge
Elect automation control movement
Reversible hydraulic mulch auger
Galvanized legs & check valves in rams
Hydraulic legs under feeder
Hydraulic slew hubs
Twin drive discharge belt
High quality EATON OMV 400 twin head drive motors
Single Drive Brevini PWD2100 Gearbox Drive for the feeder, Best in their class for Torque and tapered roller bearings for max performance
Strickland 3 Metre Tracks with 400mm Pads
Specs
Processed materials
Aggregate, Compost, Concrete, Demolition Waste, Mulch, Rock, Sand, Topsoil
Warranty
12 months / 2000 hours warranty
Ton per hour
Up to 600 tph
Engine Type
Cat 3.6 98kW Stage 5
Belt Length
70'
Stockpile Height
27'2"
Belt width
48"
Operating Weight
Up to 39,685 lb
Engine Power
131 hp
Mobility
Mobile
Feed Height
10'8"
Transport Size (L x W x H)
43'11" X 7'9" X 8'6"
Working Size (L x W x H)
68'10" X 27'2" X 9'3"
Expert training options
In-Person
Premium on-site support
Included on select units *
Expert technician at your location
Physical setup and calibration
Hands-on team training
Customized workflow optimization
Accelerated learning curve
Direct knowledge transfer
Scheduled at your convenience
Virtual
Included with every machine purchase
Included
Live online sessions with our technical experts
Factory-supported guidance and materials
Step-by-step setup guidance
Interactive Q&A sessions
Comprehensive digital documentation
Lifetime access to training videos
Remote troubleshooting support
* New equipment purchases include options for in-person expert training, used and refurbished units are eligible for virtual training sessions only. Please consult with your sales representative to confirm available training options for specific unit.
Optional add-ons
Videos
Frequently Asked Questions
Downloads
BF7048M Brochure drawings
Download
Factory Data Sheet
Download
BF7048M - Brochure.pdf
Download
What customers say about us
Tony
I couldn't be happier, that is exactly what I pictured in my head
Jim Sanders
Pretty satisfied with the brand, we use our machine to move clay. If we were to source a new conveyor I would source through MP again. MP support has not been needed because the delivery and everything went as planned.
Gabriel Montalvo
We have had a good experience with our crusher. I crush granite, stone, concrete, brick. It crushes pretty fast and the machine is still working pretty good. I recommend Machinery Partner.
Fabian Afanador
Machinery Partner is a great company. I haven't had to do much service to my machine yet. The J-1910 is a good small machine for a starter set up. For the next 2 or 3 years, this ARK machine is perfect for my operation.
Eric Cook
Working with MP has been a good experience, I would work with MP again for a future purchases. Very reliable machine, it does everything i need it to do and more. It gives me a lot of extra business. The machines functionality is flawless.
Ben Hester
Machinery Partner has been great to work with. They get me answers as soon as I ask. I have had an excellent experience with Barford. All of the machine information provided was accurate
Arthur Smith
We like our machine and have been using it. We have put a couple hundred hours on it and it is running fine! We have had no problems at all. The machine is nice and compact and does what it should. We crush concrete and rock.
Amos Espinoza
Yeah, I'd definitely recommend Machinery Partner to someone looking to purchase a crusher. The 2716 for me is perfect for what I'm using it for, but it really depends on what you're trying to do. I'm planning on upgrading with Machinery Partner in the next year or two.
About the manufacturer
Barford equipment is manufactured among the world's top crushing, screening, and material handling brands in Ireland. It has an outstanding reputation for quality and reliability and with over 150 years in manufacturing. Barford's focus is reliability, simplicity, and functionality to get the job done. It's mission is to use its experience supply customers with equipment that add value to their business.
